GENESIS

FREEMOTION GENESIS DS LAT PULL/HIGH ROW

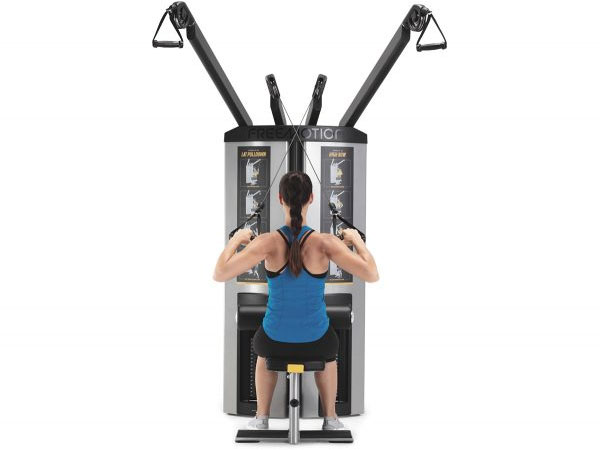

The Genesis DS Lat Pull-High Row engages the arms, shoulders, back and stabilizer muscles to improve overall core strength and balance. An adjustable thigh pad comfortably secures legs throughout the workout while the pivoting, padded seat pad can be quickly folded away for standing workout positions.

NEW DAY, NEW WORKOUT

Create custom workouts that incorporate arms, shoulders, back and stabilizer muscles using beneficial “pulling” moves that include the frontal plane, rotational pull and unilateral pull.

PERSONALIZED FIT

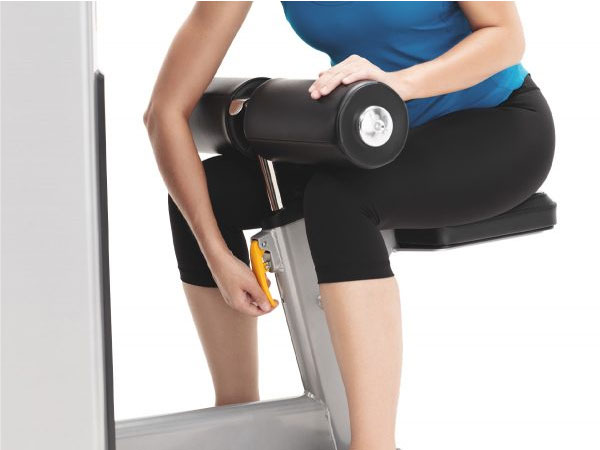

Contoured, thigh pads adjust in height, and also swivel and slide, to fit people of all sizes.

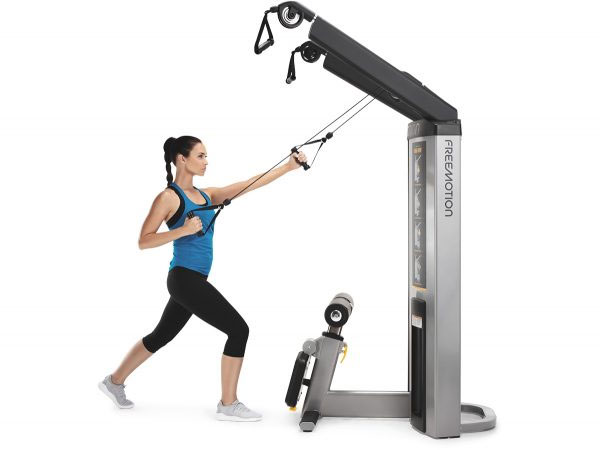

TAKE A STAND

Quickly fold away the padded, pivoting seat to change from seated row to a standing lat exercise.

STRENGTHEN THE PLANE

Engage arms, shoulders, back and stabilizer muscles in a variety of pulling options including the frontal plane, rotational pull and unilateral pull.

INDEPENDENT ARM MOVEMENT

Handles can move together or one at a time to create results-driven lat exercises and single arm strength movements.

TWO ENCLOSED 180 LBS (81 KG) WEIGHT STACKS

Protected, limited access to moving parts is safer for your members and trainers.

PERFECT FIT

Contoured, thigh pads adjust in height and swivel and slide to fit people of all sizes.

CABLE TRAVEL

Extensive cable travel allows for a full exercise flexion of 72 inches per arm (183 cm).

INDUSTRIAL CONSTRUCTION

This Freemotion machine is built with 11 and 7-gauge steel tubing and is electrostatically powder-coated with paint that has undergone 2,000 hours of salt spray testing.

PIVOT SEAT PAD

Quickly fold away the padded seat to change from seated to standing movements.

KICK PLATES

Solid 16-gauge, stainless steel kick plates protect the machine from wear and tear.

WEIGHT CAPACITY

Built to last, the Genesis DS Lat Pull/High Row press works for people up to 400 lbs (181 kg).

PRODUCT SPECIFICATIONS

Standard Frame Colors Dell Gray
Plastic Colors Black, Platinum Metallic Silver, Bordeaux Red, Dell Gray
Standard Upholstery Colors Black Vinyl

Equipment Features

Instructional Placards Yes
Adjustments Pivot seat pad for standing chest/shoulder movements
Weight Stack lbs (kg) QTY 2 – 180 lbs weight stacks (81.6 kg)
Upholstery Vinyl with 2 in (5 cm) thick foam
Pulleys Aluminum swivel pulleys
Cable Travel in (cm) 72 in (182.8 cm) per arm
Rubber Feet Soft PVC
ADA Compliant Compliant with the Americans with Disabilities Act for wheelchair accessibility.
Resistance lbs (kg) 1 arm: 90 lbs (40.8 kg)
2 arms: 180 lbs (81.6 kg)
Weight Stack Configuration lbs (kg) 2 – 10 lbs top plates, 34 – 10 lbs plates
(2 – 4.5 kg top plates, 34 – 4.5 kg plates)

Equipment Dimensions & Weight

Machine Weight lb (kg) 709.8 lbs (322 kg)
Product L x W x H in (cm) 54 x 48 x 84 in (137.1 x 121.9 x 213.3 cm)
